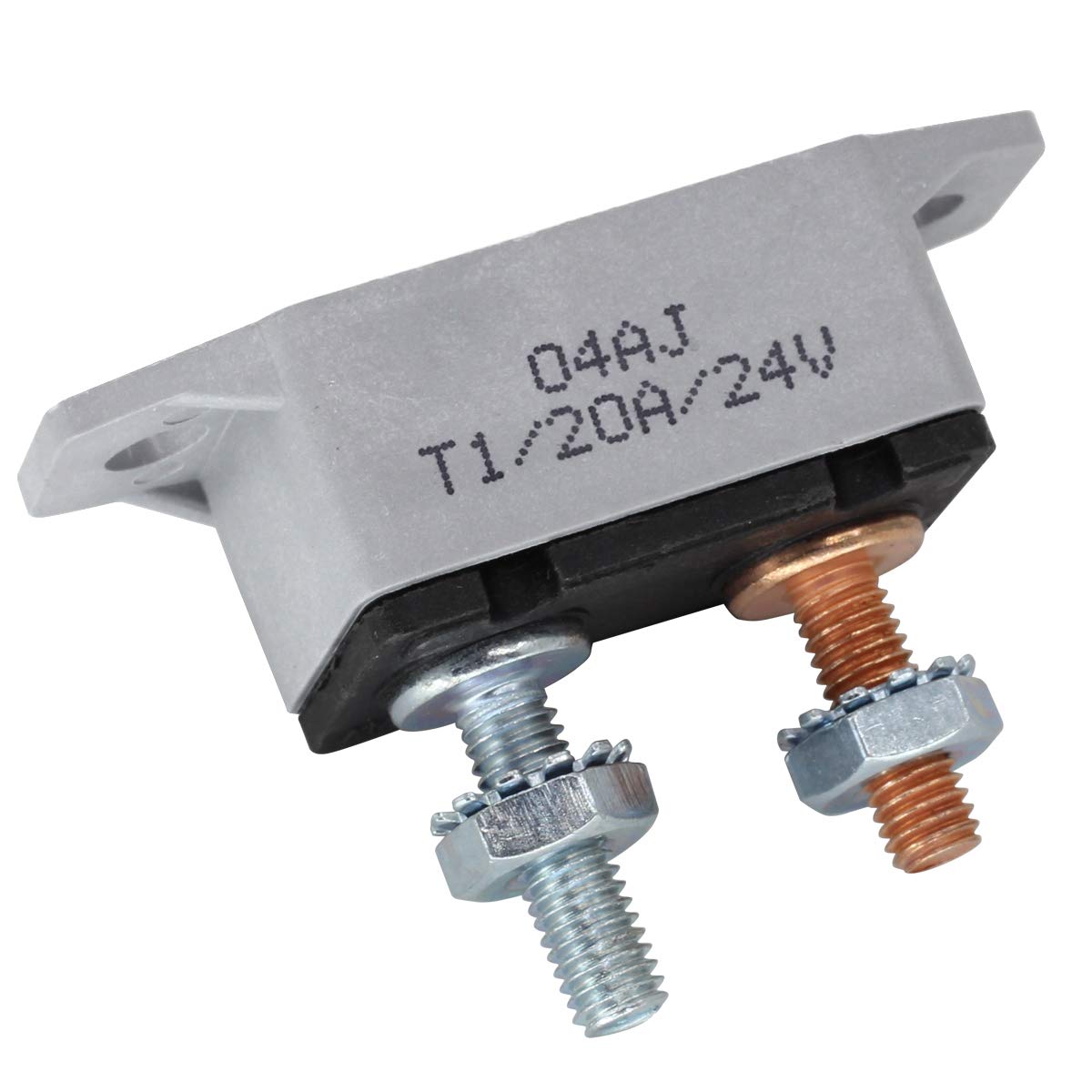

12/24V Stud Bolt Type 20A Automatic Reset Circuit Breaker Fuse Holder 20amp with Waterproof Red Cover
Product details
| Management number | 231530094 | Release Date | 2026/06/18 | List Price | US$2.80 | Model Number | 231530094 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

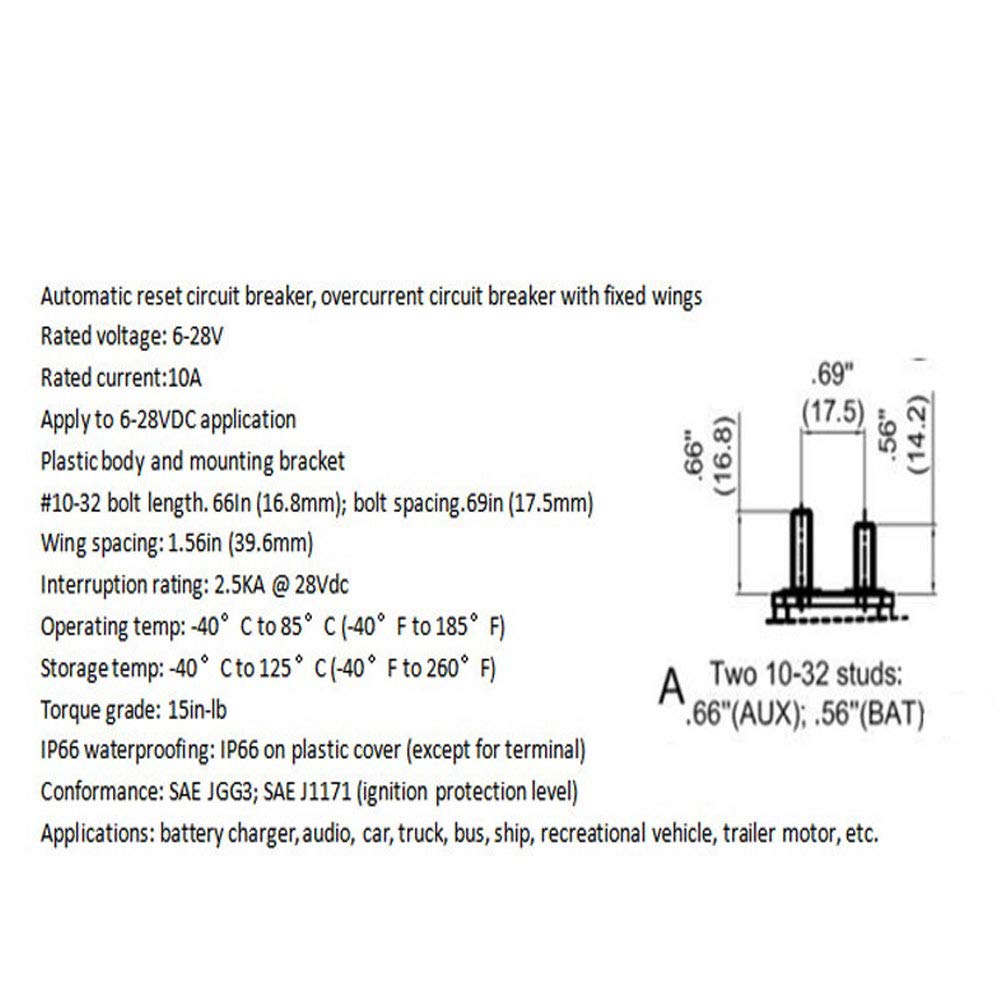

Specification: Rated voltage: 6-28V Rated current:10A/15A/20A/30A/40A/50A Apply to 6-28VDC application Plastic body and mounting bracket #10-32 bolt length. 66In (16.8mm); bolt spacing.69in (17.5mm) Wing spacing: 1.56in (39.6mm) Interruption rating: 2.5KA @ 28Vdc Operating temp: -40°C to 85°C (-40°F to 185°F) Storage temp: -40°C to 125°C (-40°F to 260°F) Torque grade: 15in-lb IP66 waterproofing: IP66 on plastic cover (except for terminal) Conformance: SAE JGG3; SAE J1171 (ignition protection level) Package Included: 1x 20A Automatic Reset Circuit Breaker With Red Cover
- #10-32 Studs Terminals can be Stacked up to 1/2" circuit breaker 20A
- High and low temperature resistance (-40°C-85°C), durable and long life
- Flexible Red Vinyl Cover protects the terminal from moisture, dust and accidental short circuit
- Auto Reset Circuit Breaker;Can be Mounted in Any Orientation
- Used in special vehicles, off-road vehicle winches, yachts and ships electrical control,14V-28V models
| ASIN | B07QWRG8HS |
|---|---|
| Voltage | 24 Volts |
| Brand Name | RKURCK |
| Part Number | RKURCK-CB004 |
| Manufacturer | RKURCK |
| Mounting Type | Panel Mount |
| Current Rating | 20 Amps |
| Number of Poles | 2 |
| Circuit Breaker Type | Standard |
| Warranty Description | 1 year |
